Fly Machines go through a series of lifecycle states during creation, updates, shutdown, and deletion. If you’re automating deployments, coordinating Machine pools, or writing tools against the Machines API, understanding these states can help you make better decisions.

​
Machine state vs. machine version state

Each Machine has a single Machine ID, but every change (like updating the image or resources) creates a new Machine version. It’s important to distinguish between:
  • Overall Machine state – represents the active version of the Machine.
  • Machine version state – represents the state of a specific version of a Machine.
If you query a Machine without specifying a version, the API returns the current active version’s state. If you query an older version, the API may return a terminal state like replaced.

​
Machine state types

​
Persistent states

These states remain until you take action (or something fails).

​
Transient states

These are short-lived. The Machine will move to a new state automatically.

​
Terminal states

These are final states that a Machine or its version won’t exit from.

​
Machine state lifecycle diagrams

​

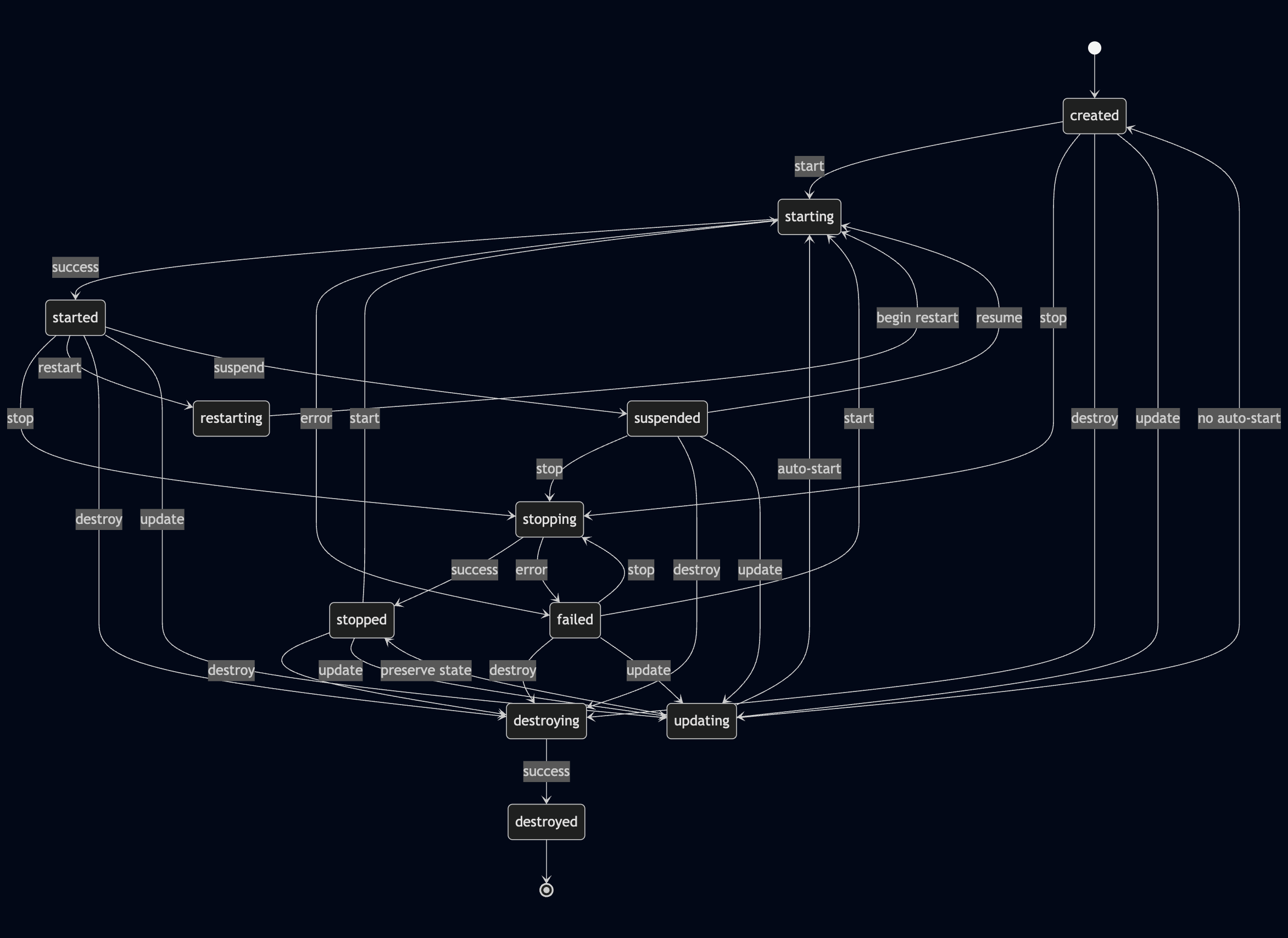

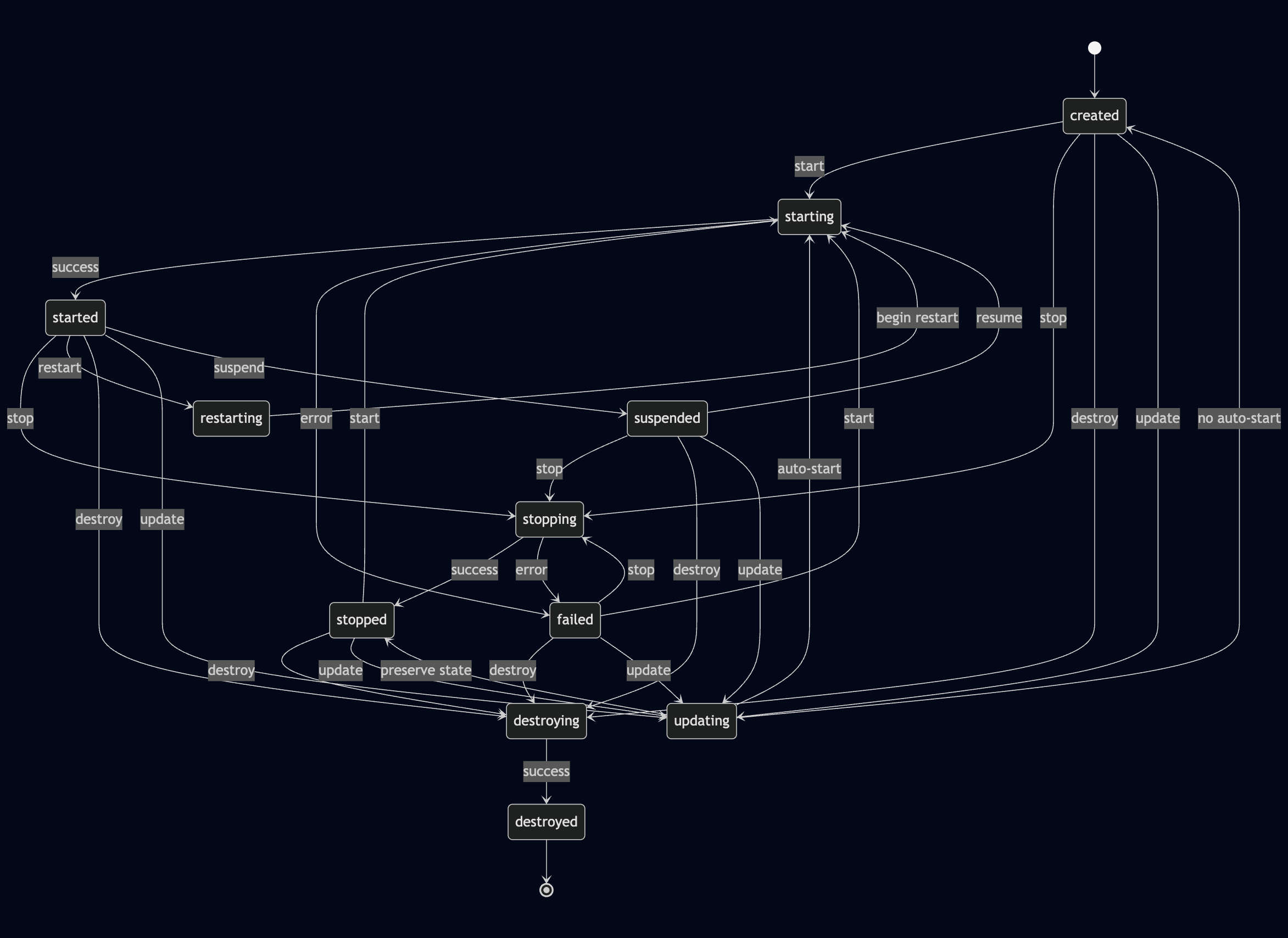

Overall Machine state lifecycle

Machine state lifecycle diagram

​

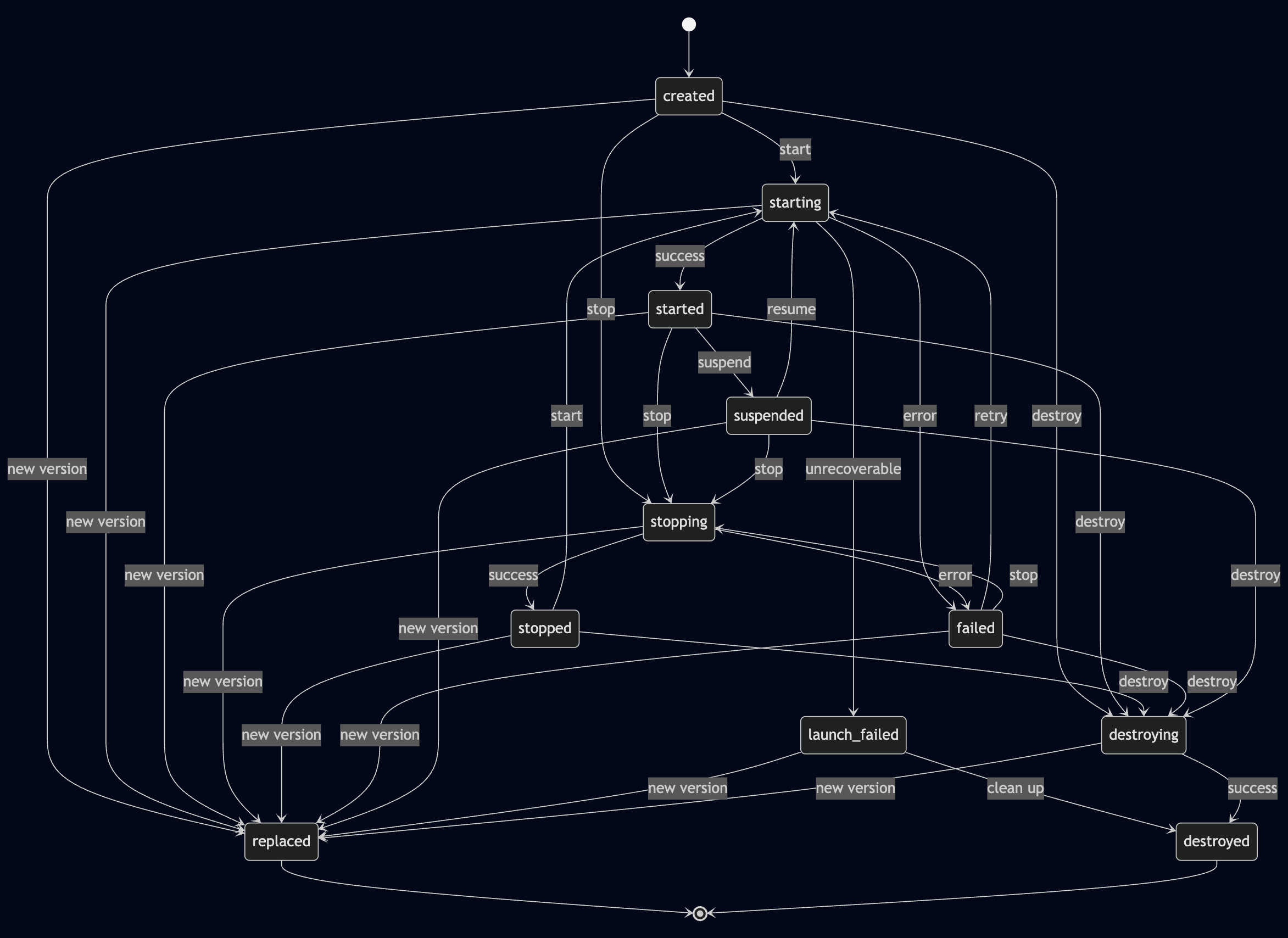

Machine version state transitions

Machine version state transitions diagram

​
Update and versioning behavior

When you update a Machine:
  1. A new Machine version is created with the updated configuration.
  2. The previous version is marked as replaced.
  3. The new version becomes the active version and:
    • May stay in created if skip_launch is set to true.
    • May transition to started by default.
    • May transition to stopped, depending on how the update was triggered and the config used.
Machines are launched automatically upon creation or after an update unless skip_launch is explicitly set. This flag allows you to create or update a Machine without starting it immediately. If you query an old version by version ID, you may see replaced. To always get the current state, query the Machine without specifying a version.

​
Diagnosing stuck Machines

If a Machine stays in a transient state for an extended time, it might be stuck (“wedged”). The following thresholds can help you decide:
  • starting, stopping, restarting, or destroying > 5 minutes (this can depend on the configured kill_timeout)
  • updating > 10 minutes
To troubleshoot:
  1. Check machine events via the Machines API.
  2. Try stopping and starting the Machine.
  3. If needed, contact Fly.io support with the Machine ID.

​
Important Machine state considerations

  • replaced applies only to old versions and is terminal for that version. If you query an older version by ID, the API will always return replaced for that version, even if the Machine is currently running.
  • migrated indicates the Machine was moved to a new host and is no longer active.
  • Machines in suspended preserve memory and disk state, and resume faster than stopped.
  • The launch_failed state is usually unrecoverable and transitions to destroyed.
  • Machines in failed may be recoverable. You can try restarting, stopping, or destroying them.
